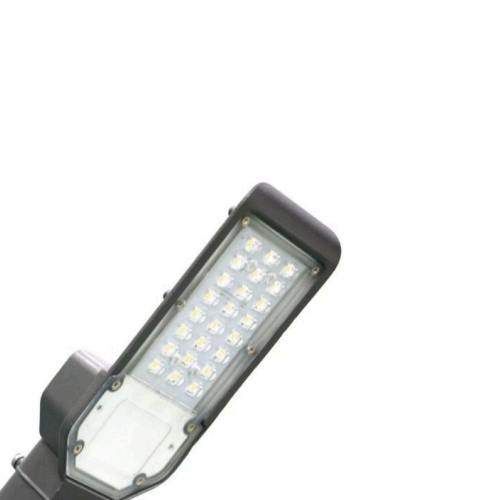

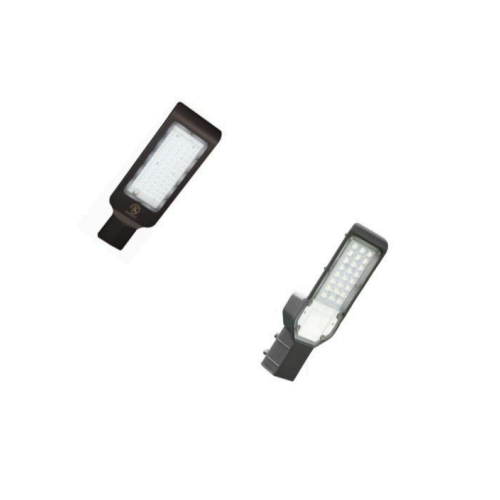

Street Light 24 Wattage

---

CODE	DIMENSIONS(mm)	WATTAGE
LST24J1	330 x 115 x 40	24
LST30J1	330 x 115 x 40	30
LST36J2	360 x 115 x 40	36
LST50J3	445 x 150 x 40	50
LST70J5	562 x 180 x 75	70
LST90J5	562 x 180 x 75	90
LST100J5	562 x 180 x 75	100
LST120J6/1	562 x 180 x 75	120
LST200J5	515 x 365 x 75	200
LST250J5	515 x 365 x 75	250

CODE	DIMENSIONS(mm)	WATTAGE
SLJC24	260 x 100 x 55	24
SLIC36	300 x 120 x 50	36
SLJC150	565 x 205 x 75	150

General Specifications

LED	Bridgelux/ Edison / Seoul
LED SIZE	SMD
BODY COLOR	Grey
IP RATING	66
COLOR TEMP	3000, 4000 & 6500K
LUMEN OUTPUT	>2640lm |>3300lm I >3960lm I >5500lm | >7700lm I>11000lm I >13200lm I >22000lm | >27500lm
MATERIAL	Pressure die cast aluminium enclosure
BEAM ANGLE	Batwing
MOUNTING	Pole Mounting.
WARRANTY	2 Yrs

General Specifications

LED	Bridgelux/ Edison / Seoul
LED SIZE	SMD
BODY COLOR	Grey
IP RATING	66
COLOR TEMP	3000, 4000 & 6500K
LUMEN OUTPUT	>2400lm I >3600lm | >15000lm
MATERIAL	Pressure die cast aluminium enclosure
BEAM ANGLE	Batwing
MOUNTING	Pole Mounting.
WARRANTY	2 Yrs
