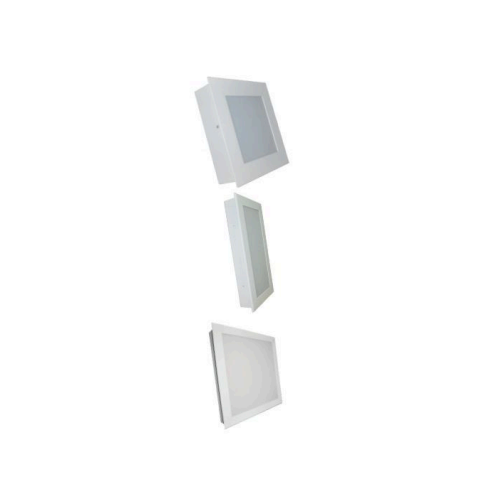

CLEAN ROOM MS SERIES (TOP OPENING)

*AVAILABLE IN SS FINISH BOTTOM FRAME ON REQUEST

---

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
CLMST1235	320 x 612 x 60	285 x 572	18
CLMSB1125	320 x 320 x 60	285 x 258	25
CLMSB2230	612 x 612 x 60	580 x 580	30
CLMSB1235	320 x 612 x 60	285 x 572	35
CLMSB1245	320 x 612 x 60	285 x 572	45
CLMSB2245	612 x 612 x 60	580 x 580	45
CLMST1245	320 x 612 x 60	285 x 572	45
CLMST2245	612 x 612 x 60	580 x 580	45
CLMST2270	612 x 612 x 60	580 x 580	70

General Specifications

LED	Bridgelux/ Edison /Seoul
LED SIZE	SMD
BODY COLOR	White
IP RATING	54
COLOR TEMP	2700 to 6500K & Multi CCT
LUMEN OUTPUT	>3150lm I >4050lm I >4050lm I >6300lm
MATERIAL	Ms body
BEAM ANGLE	120 Deg
MOUNTING	False ceiling.
WARRANTY	2 Yrs
