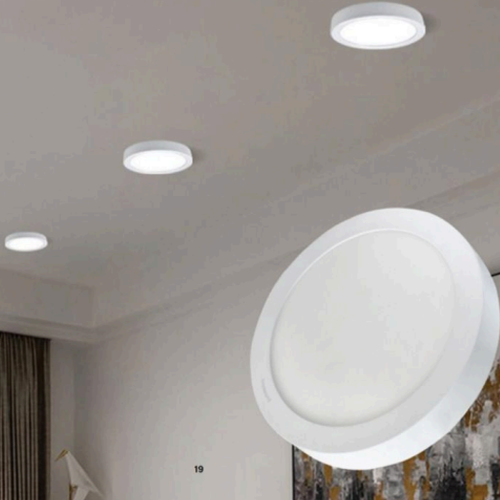

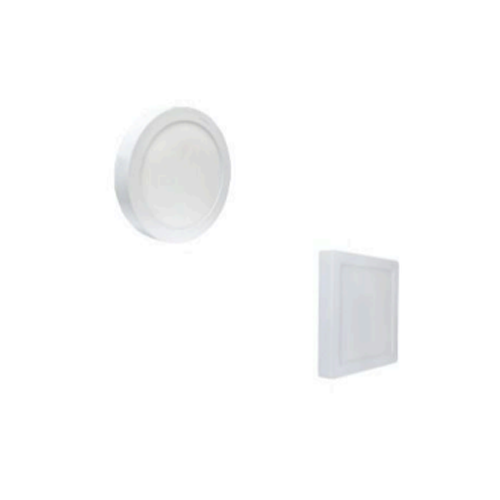

Dome Lights

---

CODE	DIMENSIONS(mm)	WATTAGE
XDE7	120 x 31	7
XDE12/4	175 x 37	12
XDE15/4	225 x 37	15
XDE18/4	225 x 37	18

CODE	DIMENSIONS(mm)	WATTAGE
YDE8	120 x 120 x 30	8
YDE12/4	175 x 175 x 37	12
YDE15/4	225 x 225 x 37	15
YDE18/4	225 x 225 x 37	18

General Specifications

LED	Bridgelux /Edison/Seoul
LED SIZE	SMD
BODY COLOR	White
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>490lm |>840lm |>1250lm |>1260lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	120 Deg
MOUNTING	Surface
WARRANTY	2 Yrs

General Specifications

LED	Bridgelux /Edison/Seoul
LED SIZE	SMD
BODY COLOR	White
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>560lm |>840lm |>1250lm |>1260lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	120 Deg
MOUNTING	Surface
WARRANTY	2 Yrs
