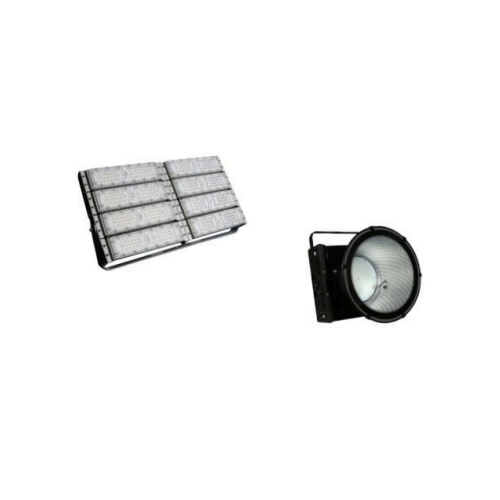

Sports Flood Light 50 Watt

---

CODE	DIMENSIONS(mm)	WATTAGE
FFL50/2	310 x 80 x 65	50
FFL100/2	310 x 160 x 65	100
FFL150/2	310 x 240 x 65	150
FFL200/2	310 x 320 x 65	200
FFL250/2	310 x 400 x 65	250
FFL300/2	615 x 240 x 65	300
FFL400/2	615 x 320 x 65	400
FFL500/2	615 x 400 x 65	500
FFL600/2	615 x 480 x 65	600
FFL800/2	615 x 640 x 65	800
FFL1000/2	615 x 800 x 65	1000

CODE	DIMENSIONS(mm)	WATTAGE
SFLGC250/1	455 x 440	250
SFLGC300/1	425 x 320	300

General Specifications

LED	Osram/Bridgelux
LED SIZE	SMD
BODY COLOR	Grey/ Black
IP RATING	65
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	> 5500 Im >22000 Im >44000 Im >88000 Im > 11000 Im >27500 Im >55000 Im >110000 Im > 16500 Im
MATERIAL	Specially Fabricated aluminium Fins
BEAM ANGLE	50 Deg.

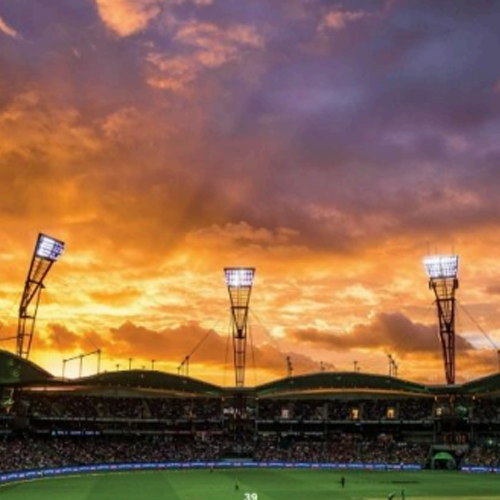

MOUNTING	Pole & High Mast Lighting
WARRANTY	2 Yrs

General Specifications

LED	Osram/Bridgelux/Cree
LED SIZE	SMD
BODY COLOR	Black
IP RATING	65
COLOR TEMP	3000/4000/6500K
LUMEN OUTPUT	> 25000 Im > 30000 lm >40000 lm > 50000 lm
MATERIAL	Specially fabricated aluminum body
BEAM ANGLE	36,60 & 80 deg
MOUNTING	Pole & High Mast Lighting
WARRANTY	2 Yrs
