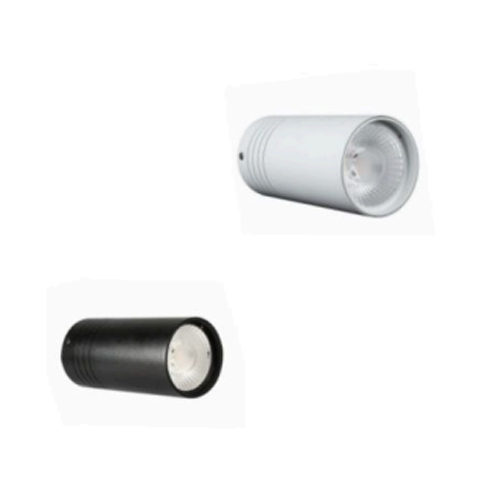

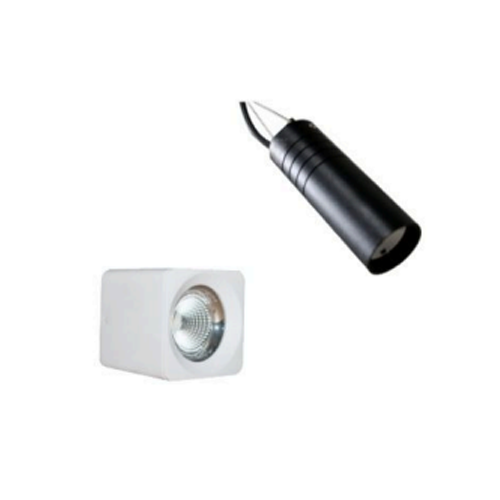

LED COB Surface

---

CODE	DIMENSIONS(mm)	WATTAGE
LCS10/8	50 x 125	10
LCS20/8	60 x 155	20
LCS30/8	80 x 165	30

CODE	DIMENSIONS(mm)	WATTAGE
LCSW10/8	50 x 125	10
LCSW20/8	60 x 155	20
LCSW30/8	80 x 165	30

General Specifications

LED	Bridgelux/ Cree/Edison
LED SIZE	COB
BODY COLOR	Black
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>800lm I>1600lm I>2400lm
MATERIAL	Extruded aluminum
BEAM ANGLE	24, 36 & 48Deg
MOUNTING	Surface
WARRANTY	2 Yrs

General Specifications

LED	Bridgelux/Cree/Edison
LED SIZE	COB
BODY COLOR	White
IP RATING	20
COLOR TEMP	3000/4000/650ok
LUMEN OUTPUT	>800lm 1 >1600lm I>2400lm
MATERIAL	Extruded aluminum
BEAM ANGLE	24, 36 & 48Deg
MOUNTING	Surface
WARRANTY	2 Yrs
