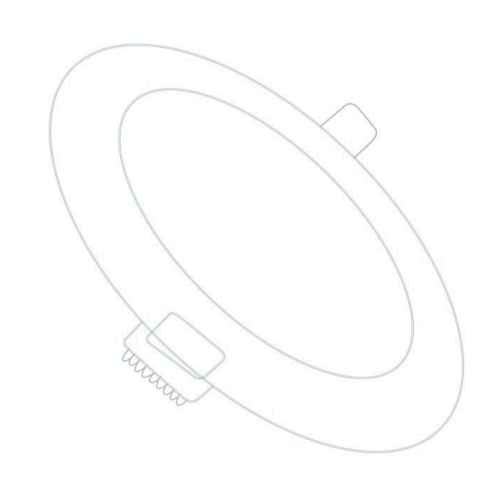

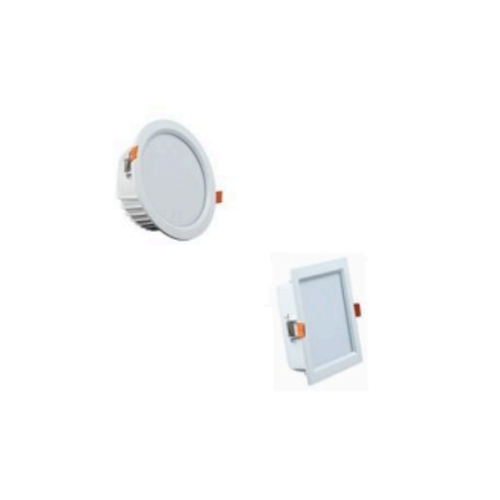

LED Down Lights DL018 Wattage 8

---

CODE	DIMENSIONS(mm)	WATTAGE
DL018	82 x 53	58	8
DL0112	100 x 52	85	12
DL0116	125 x 50	100	16
DL0124	150 x 50	120	24
DL0130	177 x 70	157	30
DL0136	177 x 70	157	36

CODE	DIMENSIONS(mm)	WATTAGE
DL028	75 x 75 x 52	60 x60	8
DL0212	105 x 105 x 53	85 x 85	12
DL0216	132 x 132 x 50	110 x110	16
DL0224	155 x 155 x 52	135 x 135	24
DL0230	177 x 177 x 67	153 dia	30
DL0236	177 x 177 x 67	153 dia	36

General Specifications

LED	Bridgelux/Edison/Seoul
LED SIZE	SMD
BODY COLOR	White
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>480lm | >840| >1050lm | >1920lm I >2400lm I >2880
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	120 Deg
MOUNTING	Recess Mount
WARRANTY	2 Yrs

General Specifications

LED	Bridgelux/Edison/Seoul
LED SIZE	SMD
BODY COLOR	White
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>480lm | >840| >1050lm | >1920lm I >2400lm I >2880
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	120 Deg
MOUNTING	Recess Mount
WARRANTY	2 Yrs
