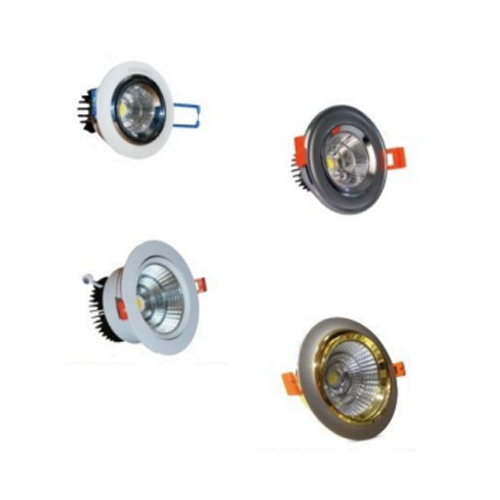

Bridgelux LC7Q/1 Wattage 7

---

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
LC7Q/1	81 x 81 x 52	75 x 75	7
LC7R/1	81 x 52	75	7
LC7R/2	82 x 100	72	7
LC7R/3	80 x 120	60	7
LC7R	126 x 80	118	7

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
LC10RN/3	90 X 59	80	10
LC11R/2	82 x 110	70	11
LC10R/4/B	90 x 58	60	10

General Specifications

LED	Bridgelux / Cree/Edison
LED SIZE	COB
BODY COLOR	white
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>490lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	24, 36 & 42 deg
MOUNTING	Recess Mount
WARRANTY	2 Yrs

General Specifications

LED	Bridgelux / Cree/Edison
LED SIZE	COB
BODY COLOR	white And Nickle coated
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>800lm I >880lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	24, 36 & 42 deg
MOUNTING	Recess Mount
WARRANTY	2 Yrs
