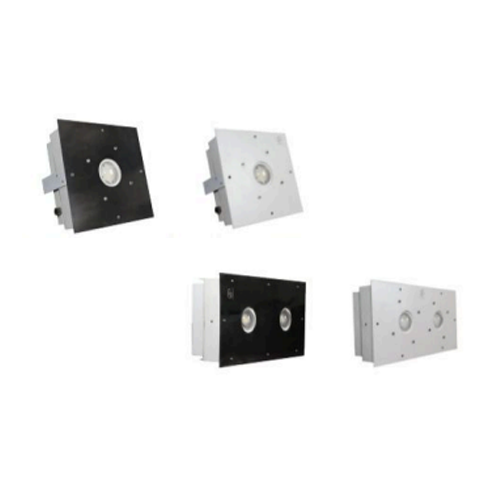

Flame Proof Cleam Room

---

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
FAFLPCR01W1113О	330 x 330 x 165	285 x 285	30
FAFLPCR01W11140	330 x 330 x 165	285 x 285	40
FAFLPCR01W11150	330 x 330 x 165	285 x 285	50

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
FAFLPCR01W12130	330 x 622 x 165	285 x 572	30
FAFLPCR01W12140	330 x 622 x 165	285 x 572	40
FAFLPCR01W12150	330 x 622 x 165	285 x 572	50
FAFLPCR01W12260	330 x 622 x 165	285 x 572	60
FAFLPCR01W12280	330 x 622 x 165	285 x 572	80
FAFLPCR01W122100	330 x 622 x 165	285 x 572	100

General Specifications

LED	Cree /Bridgelux / Osram
LED SIZE	SMD
BODY COLOR	White
IP RATING	66
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	> 3300 lm | >4400lm 5500lm
MATERIAL	Extruded aluminum Outercase & Pressure die cast FLP Enclosure
BEAM ANGLE	120 Deg
MOUNTING	Resess Mount
WARRANTY	2 Yrs

General Specifications

LED	Cree / Bridgelux / Osram
LED SIZE	SMD
BODY COLOR	Grey
IP RATING	66
COLOR TEMP	3000/4000/650ok
LUMEN OUTPUT	00 Im >6600 lm >4400 Im >8800 lm >5500lm >11000lm
MATERIAL	Extruded aluminum Outercase & Pressure die cast FLP Enclosure
BEAM ANGLE	120 Deg
MOUNTING	Resess Mount
WARRANTY	2 Yrs
