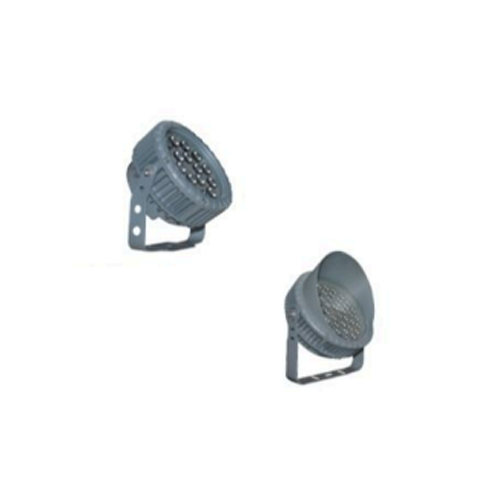

Facade Light FCR9 Wattage 9

---

CODE	DIMENSIONS(mm)	WATTAGE
FCR9	130 x 95	9
FCR18	180 x 100	18
FCR24	230 x 110	24
FCR36	230 x 110	36
FCR50	290 x 235	50
FCR100	290 x 235	100

General Specifications

LED	Seoul/Bridgelux/Edison/Osram
LED SIZE	Power LED / SMD
BODY COLOR	Grey
IP RATING	66
COLOR TEMP	3000/4000/6500k| RGB Pink, Purple, Ice blue, Amber
LUMEN OUTPUT	>480lm | >1260lm | >1680lm >2520lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	15, 24, 36,42 & 60 Deg.
MOUNTING	Pole,Wall & Surface mount
WARRANTY	2 Yrs

General Specifications

LED	Seoul/Bridgelux/Edison/Osram
LED SIZE	Power LED/SMD
BODY COLOR	Grey
IP RATING	66
COLOR TEMP	3000, 4000,6500K.ICE BLUE.MAGENTA,PINK,BLUE, RED & GREEN
LUMEN OUTPUT	>3500lm | >7000lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	15, 24, 36,42 & 60 Deg.
MOUNTING	Pole,Wall & Surface mount
WARRANTY	2 Yrs
