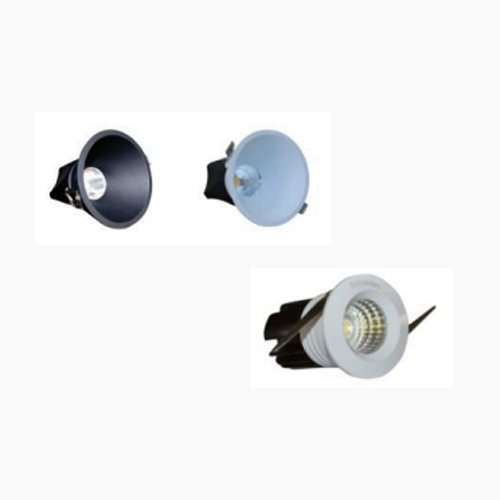

COB Curio Range CAC111-BК Wattage 10

---

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
CAC111-BК	90 x 88	80	10
CAC112-WH	90 x 88	80	10
CAC113-BK	108 x 112	98	18
CAC114-WH	108 x 112	98	18

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
LSR1	35 x 50	30	1
LSR3	35 x 50	30	3

General Specifications

LED	Bridgelux / Cree /Edison
LED SIZE	COB
BODY COLOR	White /Black
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>800lm >1440lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	24, 36 & 48Deg
MOUNTING	Recess Mount
WARRANTY	2 Yrs

General Specifications

LED	Cree / Seoul
LED SIZE	SMD
BODY COLOR	White
IP RATING	20
COLOR TEMP	3000, 4000 & 6500K
LUMEN OUTPUT	> 65 lm |> 195 lm
MATERIAL	Pressure die cast aluminium
BEAM ANGLE	15,24, 36,42 & 60 deg
MOUNTING	Recess Mount
WARRANTY	2 Yrs
