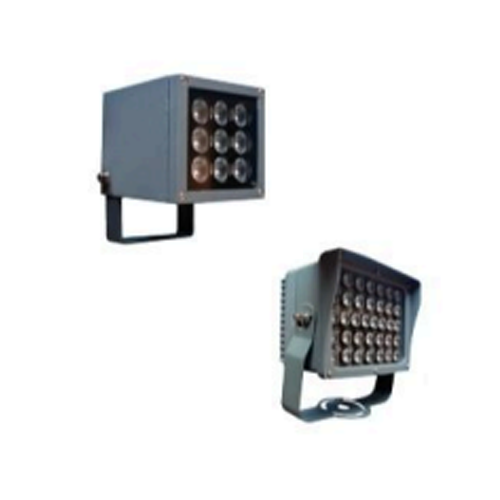

Facade Light FCQ4 Wattage 4

---

CODE	DIMENSIONS(mm)	WATTAGE
FCQ4	100 x 65 x 65	4
FCQ9	130 x 110 x 95	9
FCQ12	150 x 125 x 110	12
FCQ16	190 x 125 x 125	16
FCQ36	220 x 210 x 135	36
FCQ40	220 x 210 x 135	40

General Specifications

LED	Seoul/Bridgelux/Edison/Osram
LED SIZE	Power LED/SMD
BODY COLOR	Grey
IP RATING	66
COLOR TEMP	3000, 4000,6500K,ICE BLUE,МАGENTA,PINK,BLUE, RED & GREEN
LUMEN OUTPUT	>240lm I>480lm I >720lm I>1120lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	15, 24, 36,42 & 60 Deg.
MOUNTING	Pole,Wall & Surface mount
WARRANTY	2 Yrs

General Specifications

LED	Seoul/Bridgelux/Edison/Osram
LED SIZE	Power LED/SMD
BODY COLOR	Grey
IP RATING	66
COLOR TEMP	3000, 4000,6500K,ICE BLUE, MАGENTA,PINK,BLUE, RED & GREEN
LUMEN OUTPUT	>2520lm I >2800lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	15, 24, 36,42 & 60 Deg
MOUNTING	Pole,Wall & Surface mount
WARRANTY	2 Yrs
