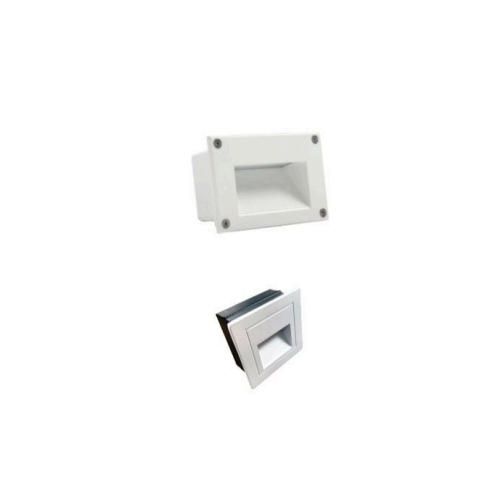

Foot Lamp

---

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
FL001	137 x 88 x 66	130 x 60	3
FL001 B	137 x 88 x 66	130 x 60	3
FL001 IP	137 x 88 x 66	130 x 60	3
FL002	85 x 85 x 40	75 x 75	3

General Specifications

LED	Bridgelux/Edison/Seoul
LED SIZE	SMD
BODY COLOR	White/ Black
IP RATING	20/65
COLOR TEMP	3000, 4000 & 650OK
LUMEN OUTPUT	> 150 Im
MATERIAL	Pressure die cast aluminium enclosure
BEAM ANGLE	Lambertian Distribution
MOUNTING	Wall flush
WARRANTY	2 Yrs
