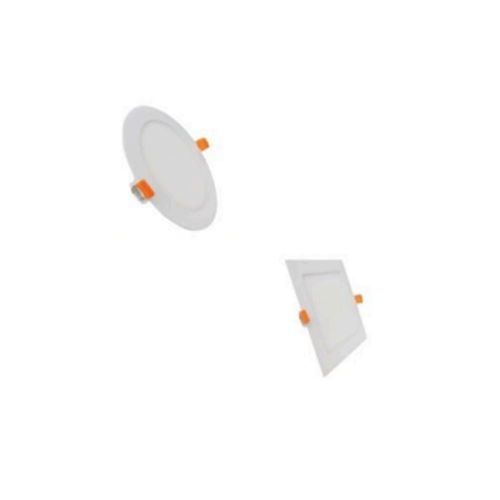

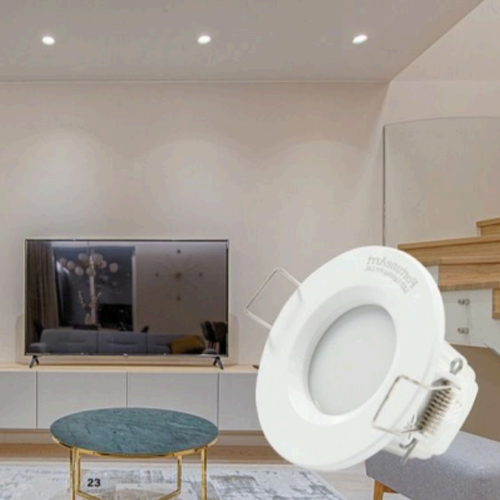

LED Down Lights DL018 Wattage 8

---

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
LEL3R/4	90 x 10	75	3
LEL6R/4	120 x 15	100	6
LEL9R/5	145 x 15	130	9
LEL12R/4	172 x 20	160	12
LEL15R/4	225 x 20	210	15
LEL18R/4	225 x 20	210	18

CODE	DIMENSIONS(mm)	CO(mm)	WATTAGE
LEL3Q/4	90 x 90 x 10	75 x 75	3
LEL6Q/4	120 x 120 x 15	100 x 100	6
LEL12Q/4	170 x 170 x 20	160 x 160	12
LEL15Q/4	225 x 225 x 20	210 x 210	15
LEL18Q/4	225 x 225 x 20	210 x 210	18

General Specifications

LED	Bridgelux/Edison/Seoul
LED SIZE	SMD
BODY COLOR	White
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>210lm | >420lm | >560 | >840lm >1200lm | >1440lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	120 Deg
MOUNTING	Recess Mount
WARRANTY	2 Yrs

General Specifications

LED	Bridgelux/Edison/Seoul
LED SIZE	SMD
BODY COLOR	White
IP RATING	20
COLOR TEMP	3000/4000/6500k
LUMEN OUTPUT	>210lm | >420lm | >560 | >840lm >1200lm | >1440lm
MATERIAL	Pressure die cast aluminum enclosure
BEAM ANGLE	120 Deg
MOUNTING	Recess Mount
WARRANTY	2 Yrs
